CMB Axis of Evil
When NASA’s WMAP satellite mapped the afterglow of the Big Bang in 2003, cosmologists expected random speckles; instead, the largest ripples, the quadrupole and octopole, seemed to line up with each other and near the Solar System’s own ecliptic plane, an alignment Kate Land and João Magueijo nicknamed the “Axis of Evil” in 2005. ESA’s sharper Planck maps did not make the pattern simply disappear, but later analyses pointed to masking, foreground cleanup, and statistical chance as possible explanations, leaving a sharper question: is the universe showing a preferred direction, or are humans finding a cosmic pattern in the noisiest part of the sky?

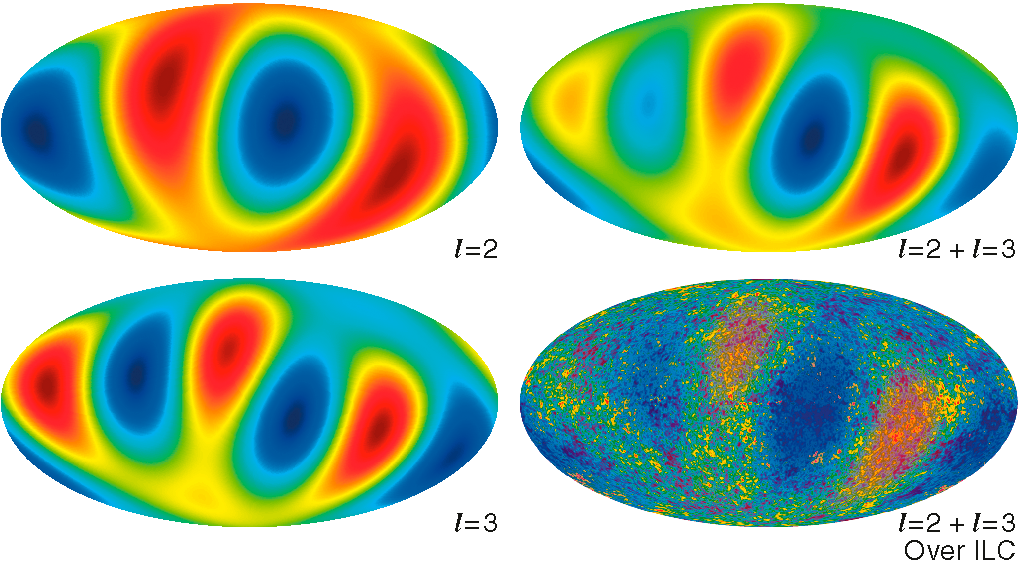

The CMB Axis of Evil is not a single object in the sky, and it is not a bright visible line. It is a statistical feature reported in maps of the cosmic microwave background, the faint microwave afterglow from the early universe. When scientists decompose the all-sky CMB temperature map into large angular patterns, especially the quadrupole and octopole terms, some of the lowest multipoles appear more aligned with one another than the simplest statistically isotropic Lambda-CDM cosmology would lead researchers to expect. Because the cosmic microwave background is usually treated as one of the strongest observational supports for a universe that is statistically the same in every direction at very large scales, even a weak directional preference attracts serious attention.

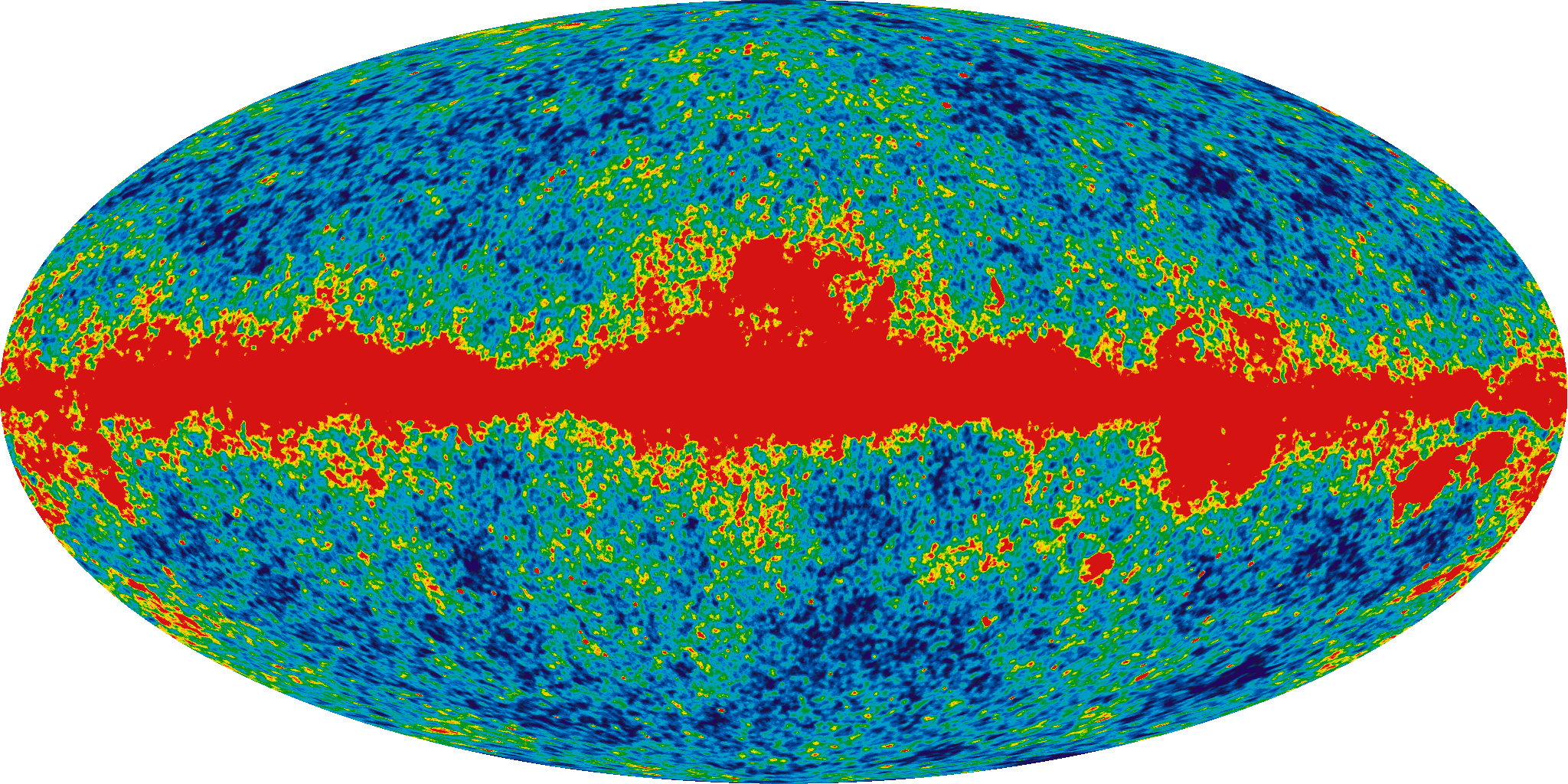

The modern story began with NASA's Wilkinson Microwave Anisotropy Probe, or WMAP, which released its first-year full-sky CMB maps in 2003. WMAP produced the first high-resolution all-sky microwave maps precise enough for many detailed tests of the largest angular scales. Soon after, several groups examined the low multipoles and reported unusual traits: low large-angle correlation, a planar-looking octopole, and an unexpected alignment between the quadrupole and octopole. In 2005, Kate Land and João Magueijo drew attention to a preferred axis near Galactic coordinates roughly b = 60 degrees, l = -100 degrees, and used the provocative label Axis of Evil to describe the implication that the microwave sky might contain a preferred direction.
The phrase is memorable, but the science is more careful and less theatrical than the name suggests. The anomaly is usually discussed in terms of multipoles, masks, foreground subtraction, cosmic variance, scan strategies, solar-system geometry, and the problem of a posteriori statistics. A pattern can look surprising after it has already been noticed, because researchers may have searched through many possible statistics before finding one that seems rare. The WMAP collaboration's own seven-year anomaly paper emphasized that many reported anomalies depend on such posterior selection, and concluded that WMAP data did not provide compelling evidence for deviations from the standard Lambda-CDM model.

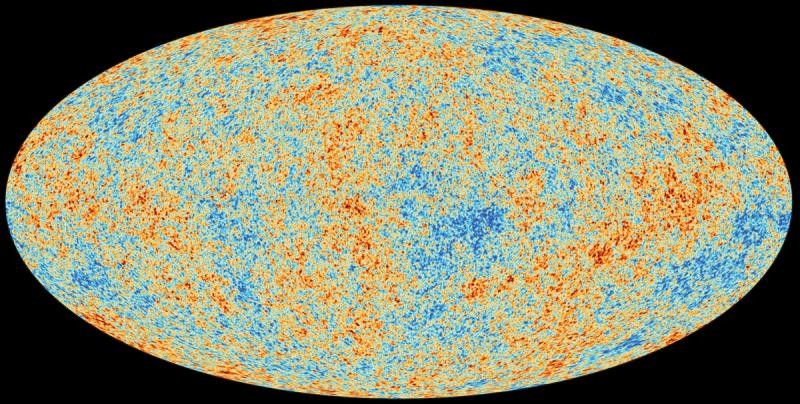

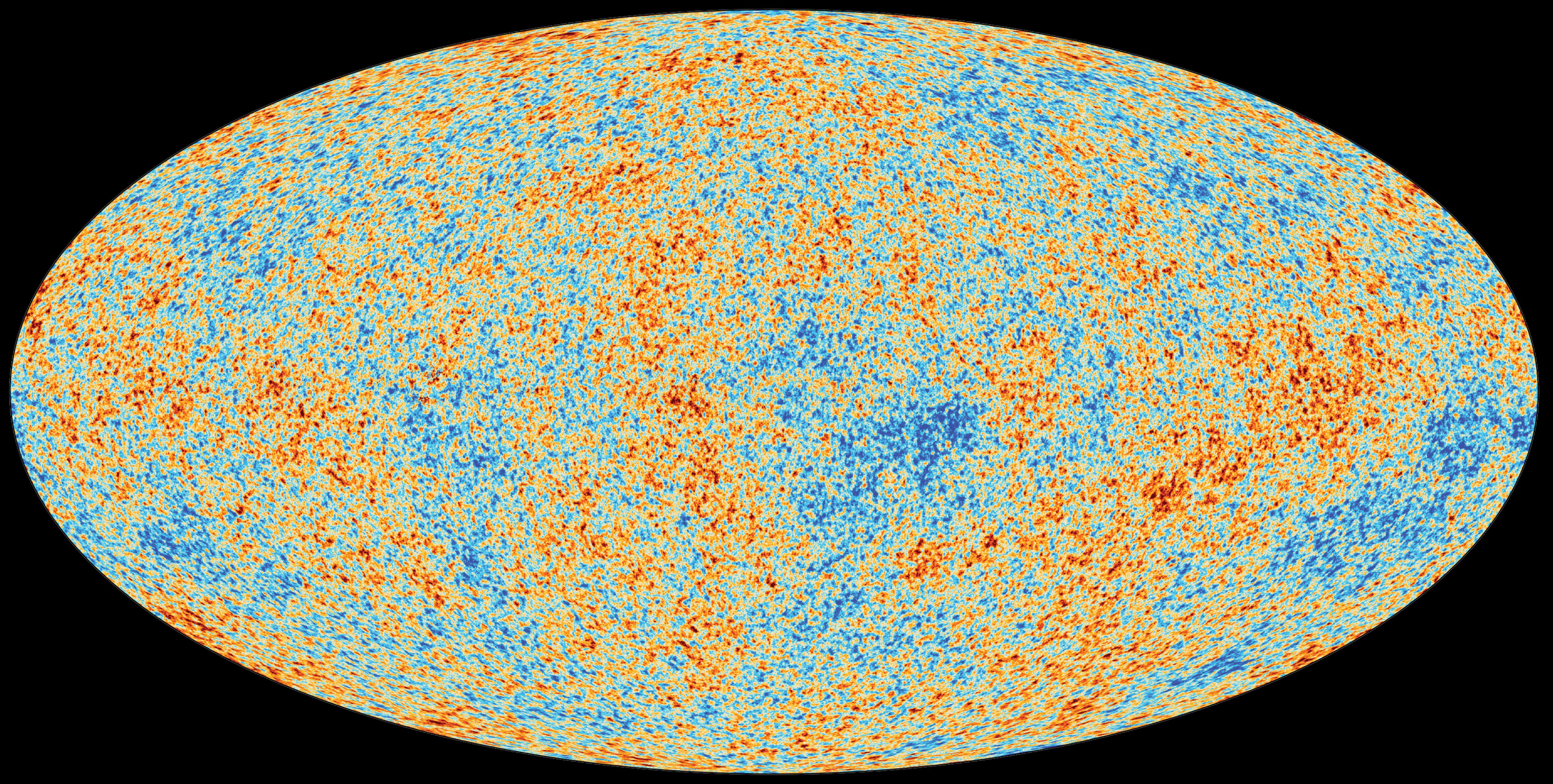

ESA's Planck mission made the case more difficult to dismiss, but not easier to interpret. Planck released its first cosmological results in 2013, using higher-resolution and higher-sensitivity measurements than WMAP. ESA reported that Planck confirmed several large-scale anomalies already hinted at by WMAP, including hemispheric asymmetry and the cold spot, and the Planck 2013 isotropy paper found deviations from isotropy that appeared robust against component-separation method, mask choice, and frequency dependence at similar significance levels. Yet Planck also strongly confirmed the standard cosmological model across a vast range of scales. The result was a strange balance: the universe looked almost exactly as expected, except for a small set of large-angle features that remained awkward.
The 2018 Planck legacy analysis added another layer. Polarization maps provide a partly independent test, because a truly primordial large-scale feature in the temperature field might leave a related trace in CMB polarization. Planck's polarization data did not produce an unambiguous matching anomaly. ESA summarized the result in 2019 by saying that Planck found no new evidence for the puzzling cosmic anomalies, while also noting that the result did not rule out their relevance. The temperature anomalies remained real in the sense that they were present in the maps, but their meaning remained unresolved.
The Axis of Evil therefore sits in a rare category of modern mystery: an officially documented scientific anomaly with public data, peer-reviewed analysis, and no agreed interpretation. It is not evidence that Earth is physically central in the universe, nor is it a confirmed failure of cosmology. It is a persistent statistical puzzle in the oldest light we can observe, kept alive by the fact that the largest scales of the CMB can only be observed once. There is no second universe to survey for comparison. What remains is a debate between chance, analysis choices, foregrounds, unknown systematics, and the possibility that the first light of the universe is carrying a subtle message about physics on scales larger than the observable cosmos.
